技術(shù)參數(shù):

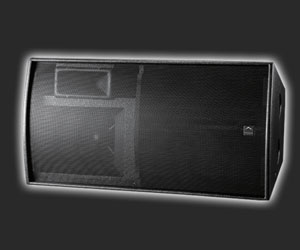

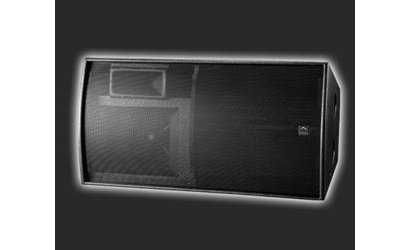

類型: Three-way bi-amp trapezoid Hybrid"horn-loaded
頻響: 50Hz-18kHZ±3dB
單元: 15"(380mm)/4" (100mm) voice coil LF driverb
10"(250mm)/2.5" (63.5mm) mid driver horn loaded
1" (25mm) exit HF compression drivers
功率: LF:500W AES2000W peak
MF+HF:300W AES,1200W peak
靈敏度: LF:104dB,MF+HF:104dB
大聲壓級: 131dB continuous,137dB peak
阻抗: LF:8 ohms
MF+HF:8 ohms
覆蓋度:70º horizontal,40º verticer
箱體: multi-laminate birch ply construction
油漆: Textured black paint
鐵網(wǎng):GRILL Black perforated steel
插頭:2*Neutrik NL4
尺寸: (W)1066mm*(H)560mm*(D)
